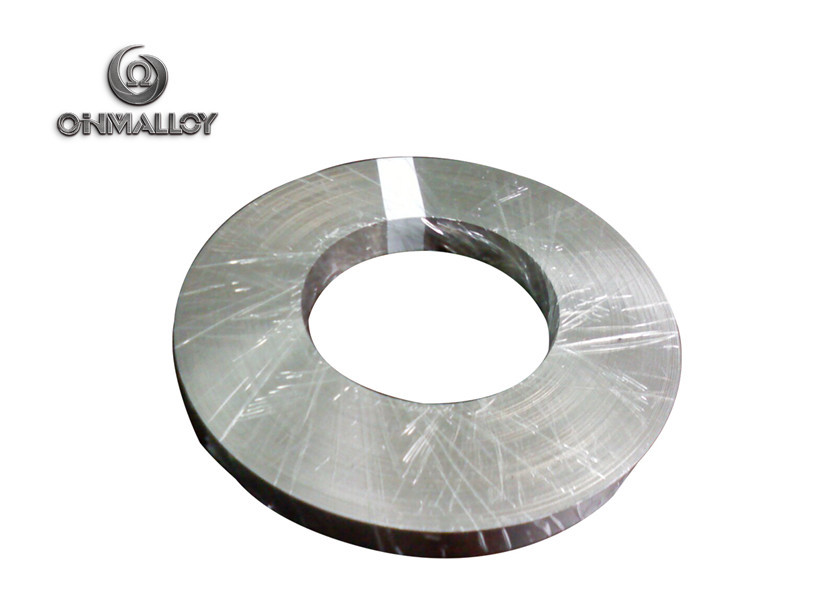

0.3mm*27mm 99.6% Bright Pure Nickel Strip for Li Battery Pack
1.Description
Nickel wire/strip are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.
Nickel 200
1). Chemical composition(%)
| Grade | C | Si | Mn | P | S | Ni+Co | Cu | Fe |
| Nickel 200 | <0.15 | <0.35 | <0.35 | | <0.01 | >99.5 | <0.25 | <0.40 |
2. Physical properties
Grade | Density (g/cm3) | Melting Range
(ºC) | Curie point
(ºC) | Volume resistivity (μΩ.cm) | Thermal conductivity (W/m. ºC) |
| Nickel 200 | 8.89 | 1435-1446 | 360 | 8.5(20ºC) | 79.3(20ºC) |
3). Mechnical properties
FORM |
Yield Strength (Mpa) |
Tensile Strength (Mpa) |
Elongation (%) |
Hardness (RB) |
Bar | Hot-finished | 105-310 | 60-85 | 55-35 | 45-80 |
| Cold-drawn,annealed | 105-210 | 55-75 | 55-40 | 75-98 |
Strip | Hard | 480-795 | 620-895 | 15-2 | >90 |
| Annealed | 105-210 | 380-580 | 55-40 | <70 |
Wire | Annealed | 105-345 | 380-580 | 50-30 | |
| No.1 Temper | 275-520 | 485-655 | 40-20 | |
| Spring Temper | 725-930 | 860-1000 | 15-2 | |
2.Specification
Strip/sheet:Thickness: 0.05mm to 5.0mm ,Width: 1.0mm to 250mm
Ohmalloy Material Co.,Ltd is a high-tech enterprise which specialized in making all kinds of alloy such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy and thermocouple Alloy.
Ohmalloy Material Co.,Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.
Our company aims to be the best-quality alloy producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people's living level, make a more green earth in the future.
